Deep Learning

💡 The Concept of Artificial Neural Networks (ANNs)

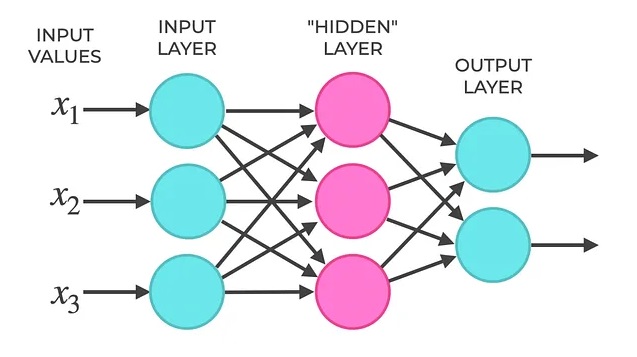

• Structure: A typical network, like a Multilayer Perceptron (MLP), consists of three main types of layers:
  1. Input Layer: Takes the preprocessed data features.
  2. Hidden Layers: One or more layers where the complex computations and feature transformations occur. A “deep” network has multiple hidden layers.
  3. Output Layer: Produces the final result, such as a classification or a numerical prediction.

* Learning Mechanism: Each connection between neurons has an associated weight and bias. The network learns by receiving input, performing calculations (Forward Propagation), and then adjusting these weights and biases to minimize prediction errors, a process driven by an algorithm called Backpropagation.

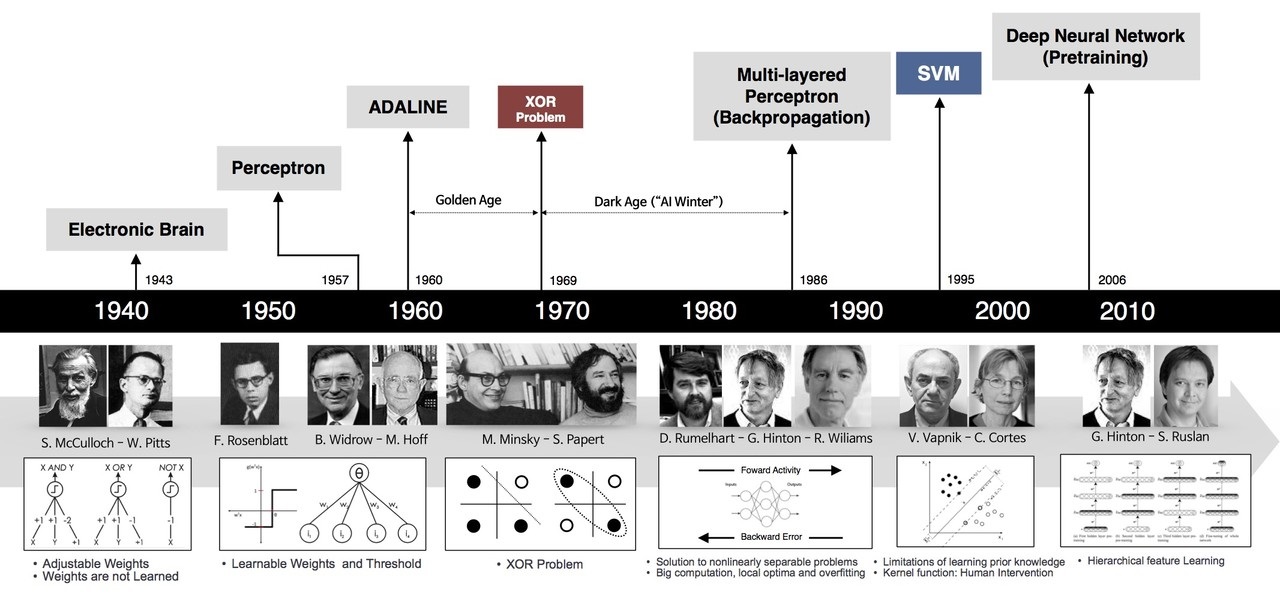

📜 A Brief History of Neural Networks

The path to modern Deep Learning involved several key milestones and significant setbacks, often referred to as “AI Winters”.

Example: Rosenblatt’s Perceptron

Architecture The perceptron is a single-layer feedforward network that performs a binary linear mapping. Given an input vector $\mathbf{x} \in \mathbb{R}^n$, the architecture is defined by:

• Affine Transformation: \begin{equation} z = \sum_{i=1}^{n} w_i x_i + b = \mathbf{w}^T \mathbf{x} + b \end{equation} where $\mathbf{w} \in \mathbb{R}^n$ is the weight vector and $b \in \mathbb{R}$ is the bias.

• Non-linear Activation: The output $\hat{y}$ is obtained via the Heaviside step function $\sigma(\cdot)$: \begin{equation} \hat{y} = \sigma(z) = \begin{cases} +1 & \text{if } z \geq 0 \ -1 & \text{if } z < 0 \end{cases} \end{equation}

Geometric Interpretation The perceptron partitions the input space into two half-spaces using a decision hyperplane $\mathcal{H}$ defined by: \(\mathcal{H} = \{ \mathbf{x} \in \mathbb{R}^n \mid \mathbf{w}^T \mathbf{x} + b = 0 \}\) The normal vector $\mathbf{w}$ defines the orientation of this hyperplane, while the bias $b$ determines the offset from the origin.

Learning Rule The algorithm updates parameters iteratively to minimize the classification error for a training set ${(\mathbf{x}_i, y_i)}$. For each misclassified sample, the weights and bias are adjusted:

\(\mathbf{w}_{new} = \mathbf{w}_{old} + \eta(y - \hat{y})\mathbf{x}\) \(b_{new} = b_{old} + \eta(y - \hat{y})\)

Where:

• $\eta \in (0, 1]$ is the learning rate.
• $(y - \hat{y})$ is the error term:
  • If correctly classified: error is $0$.
  • If $y=+1, \hat{y}=-1$: weights move toward $\mathbf{x}$.
  • If $y=-1, \hat{y}=+1$: weights move away from $\mathbf{x}$.

Convergence: If the data is linearly separable, the Perceptron Convergence Theorem guarantees convergence to a separating hyperplane in finite iterations.

🌟 Importance and Practical Applications

Deep Learning has revolutionized various fields by achieving state-of-the-art performance across complex tasks.

Key Advantages

• Automatic Feature Extraction: Models automatically learn relevant features from raw data, eliminating manual effort.
• High Accuracy: Deep neural networks deliver superior performance in areas like recognition and language processing.
• Scalability: They can effectively process and learn from massive, large-scale datasets.

Real-World Applications

🚀 Roadmap: How to Start Using Neural Networks

The journey into Deep Learning is best approached in three clear stages: building your knowledge foundation, understanding the general process, and then practicing with tools.

Step 1: Build the Foundation 📚

First, focus on the fundamentals. You need to master Python, which is the primary programming language for AI, along with essential libraries like for numerical work and for handling data. On the math side, grasp the basics of Linear Algebra and Calculus—you need them to understand how neural networks represent data and learn through optimization (like Backpropagation).

Step 2: Understand the Workflow ⚙️

Instead of complex steps, focus on the general flow a project follows: 1. Get & Prepare Data: Start by finding a clean dataset. You must then clean and scale your features (like putting all numbers in the range $[0, 1]$ using a technique like MinMaxScaler). Finally, split your data into a Training Set (most of the data) and a Testing Set (to check your final model). 2. Train the Model: This is where you select a basic neural network design (Architecture), define its layers, and use an Optimization Algorithm (like SGD) to teach it the patterns in your training data. 3. Tuning & Check: You’ll adjust external settings, called Hyperparameters, like the Learning Rate and the number of Epochs (how many times the model sees the data) to improve performance. The Testing Set is used to see if the model works well on new, unseen information.

Step 3: Implement with Frameworks 💻

The final stage is practical implementation using specialized software. Start by building basic models (like simple classification) with popular frameworks such as and PyTorch. These tools handle the complex calculations for you, allowing you to focus on the structure and data. The goal here is to gain hands-on experience and build your intuition by practicing on simple open-source datasets.
