Autoencoders and Variational Autoencoders

I. The Foundation: Standard Autoencoders (AEs)

An Autoencoder is an unsupervised deep learning model designed to compress data into a lower-dimensional representation and then reconstruct the original data from that representation.

In the context of continuum mechanics, think of it as a non-linear generalization of Proper Orthogonal Decomposition (POD) or Principal Component Analysis (PCA).

1. Architecture: The Two-Part System The network consists of two sub-networks joined by a bottleneck: \(\mathbf{x} \xrightarrow{\quad\text{Encoder } f_\theta\quad} \mathbf{z} \xrightarrow{\quad\text{Decoder } g_\phi\quad} \mathbf{\hat{x}}\)

  • The Encoder ($f_\theta$): Maps high-dimensional input $\mathbf{x} \in \mathbb{R}^D$ (e.g., a $128^3$ voxel grid or $10^5$ nodal displacements) to a low-dimensional latent vector $\mathbf{z} \in \mathbb{R}^d$ ($d \ll D$).
  • The Bottleneck (Latent Space): The most critical part. It forces the network to discard noise and prioritize only the most dominant mechanical features (e.g., stiffness modes, topological connectivity).
  • The Decoder ($g_\phi$): Maps $\mathbf{z}$ back to the high-dimensional physical space, aiming for a reconstruction $\mathbf{\hat{x}} \approx \mathbf{x}$.

2. The “Gap” Problem: Why AEs Fail at Generative Design Standard AEs are excellent for compression but fail in design optimization because the latent space is discrete and patchy.

  • The Gap Problem: If Design A and Design B are valid points in $\mathbf{z}$, the space between them is often “uncharted.” Picking a point $z_{mid}$ often decodes to physically nonsensical results (disconnected meshes or noisy artifacts).
  • No Sampling: There is no defined distribution for $\mathbf{z}$, making it impossible to “sample” new, novel designs.

II. The Generative Bridge: Variational Autoencoders (VAEs)

VAEs act as the bridge between raw data and efficient optimization by imposing a probabilistic structure on the latent space.

A variational encoder (VAE) architecture.

1. The Conceptual Framework Unlike the deterministic mapping of AEs, a VAE encoder maps the input to a probability distribution (usually Gaussian) defined by parameters $\mu$ (mean) and $\sigma$ (standard deviation). The decoder then reconstructs the input by sampling from this distribution.

2. The Mathematical Objective (ELBO) The model optimizes the Evidence Lower Bound (ELBO): \(\mathcal{L} = \mathbb{E}_{q_\phi(z|x)}[\log p_\theta(x|z)] - \beta \cdot D_{KL}(q_\phi(z|x) || p(z))\)

  • Reconstruction Loss: Ensures the output matches the input (physical accuracy).
  • KL Divergence ($D_{KL}$): Acts as a regularizer, forcing the latent distribution to look like a standard normal distribution. This creates a smooth, continuous latent space.
  • The Reparameterization Trick: Since sampling is non-differentiable, we use $z = \mu + \sigma \odot \epsilon$ (where $\epsilon \sim \mathcal{N}(0, I)$) to allow backpropagation.

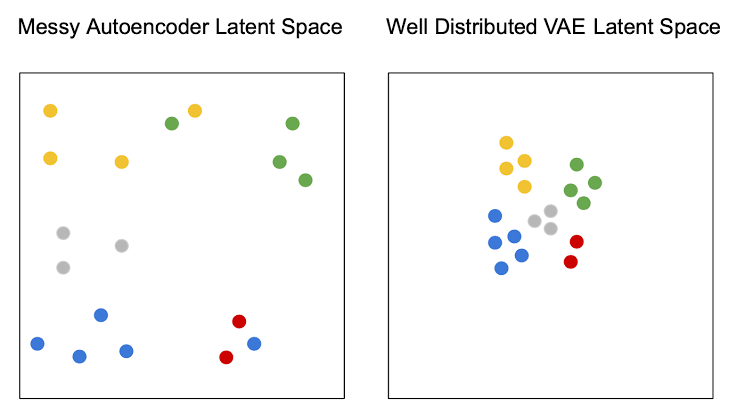

Comparison between autoencoder and VAE latens spaces.

III. Deep Dive: Interpreting the Latent Space

1. Geometric View: The Manifold Hypothesis Mechanical data concentrates on a lower-dimensional, non-linear sub-manifold $\mathcal{M}$ embedded in high-dimensional space.

  • Manifold: $\mathcal{M} \subset \mathbb{R}^D, \quad \dim(\mathcal{M}) = d \ll D$.
  • The Latent Space $\mathcal{Z}$ is essentially a “flattened” coordinate system for this complex mechanical manifold.

2. Mechanical Interpretation: Data-Driven Parameters Without manual labels, the VAE discovers its own internal variables ($z_i$):

  • Geometrical Modes: $z_1$ might control porosity; $z_2$ might govern the transition from Primitive to Gyroid surfaces.
  • Internal State Variables: In non-linear mechanics, $\mathbf{z}$ can capture hidden variables like plastic back-stress or nematic order parameters.

3. VAE Solution to Topology

  • Continuity: Points close in $\mathcal{Z}$ decode to geometrically similar shapes.
  • Compactness: Every point in the Gaussian-mapped region decodes to a valid physical structure.

IV. Practical Applications in Solid Mechanics

1. Functionally Graded Materials (FGMs): Smooth interpolation between two latent vectors ($\mathbf{z}1 \to \mathbf{z}_2$) allows for seamless geometric transitions across a structure without stress concentrations. 2. Vector Arithmetic: Performing operations like $\mathbf{z}{new} = \mathbf{z}{base} + \mathbf{v}{auxetic}$ to “add” mechanical properties to an existing design. 3. Low-Dimensional Optimization: Replacing a 50,000-variable topology optimization problem with a 10-variable latent space optimization. 4. Surrogate Modeling: Mapping boundary conditions directly to a latent vector $\mathbf{z}$ to instantly predict full stress-strain fields, bypassing expensive FEA iterations.

V. Visualizing the Unseen: Dimensionality Reduction

Since the latent space $\mathbf{z}$ is often high-dimensional (e.g., $d=64$), we must project it to 2D/3D to understand the model’s learning.

1. Primary Methods:

  • PCA (Linear): Fast and deterministic; captures global variance but fails on curved, non-linear manifolds.
  • t-SNE (Probabilistic): Excellent for finding local clusters (e.g., separating stiff vs. compliant designs), but distances between clusters are non-physical.
  • UMAP (Topological): The “Goldilocks” method. Preserves both local and global structure; ideal for mapping the continuous manifold of metastructures.

2. Diagnostic Value:

  • Latent Collapse: If UMAP shows a single blob, the model has failed to learn features.
  • Disentanglement Check: Coloring the UMAP plot by physical properties (e.g., Modulus) should reveal smooth gradients, indicating the model has successfully “encoded” physics into the latent geometry.
  • Outlier Detection: Identifying isolated points that represent failed simulations or unstable designs.

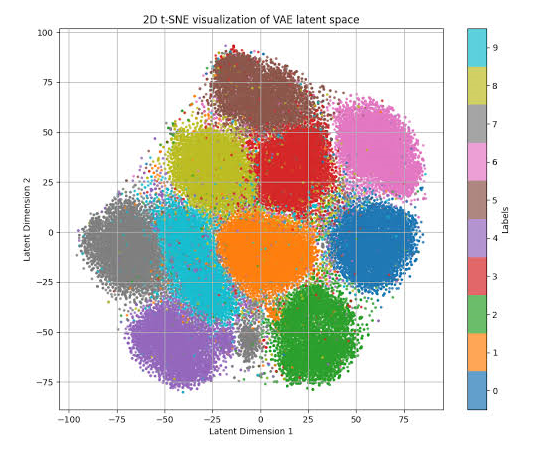

A 2D t-SNE visualization of VAE latent space.
